SCSPCC6AUTP03MLSZHGY Opterna Patchcord UTP, category 6A, standard plug, LSZH 3mtr Grey
SCSPCC6AUTP03MLSZHGY Opterna
DESCRIPTION
Opterna UTP Patch cords conform to ANSI/TIA/EIA-568-C.2, ISO/IEC 11801:2011 edition 2.2 and CENELEC EN 50173 (2011) for Category 6A/Class EA applications.
The products have been tested up to 500 MHz and are designed for high speed protocols such as 10 Gigabit Ethernet (10G) applications.
The patch cords are constructed of a SF/UTP stranded wire cable and comprises two modular plugs at both ends of the cables. The SF/UTP cable eliminate alien-crosstalk near the panel end. The RJ45 plugs are protected with molded snag-less boots that prevents the latch on the RJ45 plugs from getting damaged during installation.
Standards
• ANSI/TIA-568-C.2
• ISO/IEC 11801:2011 (Ed 2.2) Class EA
• CENELEC EN 50173-1:2011
• ANSI/TIA-1096-A (formerly FCC Part 68)
• IEC 60603-7-41$ 7.90 -
SCSPCC6AUTP02MLSZHGY Opterna Patchcord UTP, category 6A, standard plug, LSZH 2mtr Grey
SCSPCC6AUTP02MLSZHGY Opterna
DESCRIPTION
Opterna UTP Patch cords conform to ANSI/TIA/EIA-568-C.2, ISO/IEC 11801:2011 edition 2.2 and CENELEC EN 50173 (2011) for Category 6A/Class EA applications.
The products have been tested up to 500 MHz and are designed for high speed protocols such as 10 Gigabit Ethernet (10G) applications.
The patch cords are constructed of a SF/UTP stranded wire cable and comprises two modular plugs at both ends of the cables. The SF/UTP cable eliminate alien-crosstalk near the panel end. The RJ45 plugs are protected with molded snag-less boots that prevents the latch on the RJ45 plugs from getting damaged during installation.
Standards
• ANSI/TIA-568-C.2
• ISO/IEC 11801:2011 (Ed 2.2) Class EA
• CENELEC EN 50173-1:2011
• ANSI/TIA-1096-A (formerly FCC Part 68)
• IEC 60603-7-41$ 6.81 -
SCSAFPUK2WH Opterna Angular Faceplate 86 x 86 mm for 2 Keystone Jack, U.K Standard
SCSAFPUK2WH Opterna
DESCRIPTION
Opterna Angled faceplates are manufactured of flame retardant and high-quality plastics which ensure product durability. The faceplate is available in 1 or 2 port configurations.
The angled design of faceplate maintains the patch cords bend radius and provide less stain on the keystone jack. Also, by means of the angled design the faceplate provides extra room inside the back box for storage of cable.
Part of the design is the integrated label holder which allows the installer to fix labels and hence making the faceplate TIA 606 compliant. The faceplate comes with an in-built shutter to prevent dust and dampness protection.
The angled faceplate is highly recommended for Category 6A unshielded / shielded installations.
STANDARDS
• ANSI/TIA-568-C.2
• ISO/IEC 11801:2011 (Ed 2.2)
• CENELEC EN 50173-1:2011
• UL 94 V-0$ 1.63 -

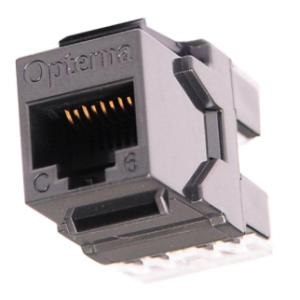

SCSJAC6AUTPBK Opterna 180° Cat 6A Unshielded Keystone jack with T568A/B label, Black
SCSJAC6AUTPBK Opterna
DESCRIPTION
Opterna category 6 unshielded jacks are designed and manufactured to meet and exceed the current and future requirements for high bandwidth and forms an essential element of the structured cabling system. The keystone jacks are highly reliable and offers optimal network performance.
The jack forms part of the faceplate as well as part of the modular patch-panel. Clear wire retaining caps are supplied which provide additional cable strain relief.
The keystone jacks are color-coded for both 568A and 568B standards and can be terminated using a standard 110 termination tool.
Standards
• ANSI/TIA-568-C-2
• ISO/IEC 11801:2011 (Ed 2.2) Class E
• CENELEC EN 50173-1:2011
• ANSI/TIA-1096-A (formerly FCC Part 68)
• IEC 60603-7-4$ 5.72 -

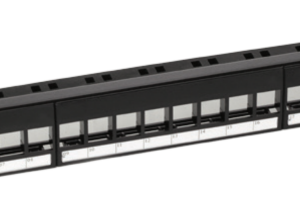

SCSPPU24UTP10G Opterna 19″ Modular 10G UTP Cat6A Patch Panel 24 ports, 1U, without modules, with rear cable management
SCSPPU24UTP10G Opterna
DESCRIPTION
Opterna snap-in type UTP patch panel is designed for customized connectors. Based on your design requirements, you can snap your preferred connectors in and make your own style patch panel.
The 10G patch panel has a staggered front port as well as staggered rear cable management to minimize alien crosstalk between jacks and cables and to achieve peak 10G performance.
The evenly designed patch panel provides an efficient and effective method of reducing alien crosstalk (AXT) from neighbouring connectors.
Standards
• ANSI/TIA-568-C.2
• ISO/IEC 11801:2011 (Ed 2.2) Class EA
• CENELEC EN 50173-1:2011
• UL 94 V-0$ 22.87 -

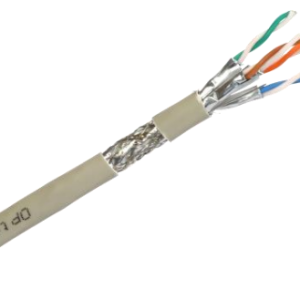

SCSSFTPC6APEBK Cat6A cable roll PVC Opterna Cat6A 23AWG S/FTP PE 4P Cable 305mtr/Box Black
SCSSFTPC6APEBK Opterna
DESCRIPTION
Opterna Category 6A 4-pair S/FTP copper cable forms the foundation of 10 Gigabit Ethernet networks. The cable exceeds Category 6A performance ensuring reliability in delivering 10G network speed and high data throughput.
The category 6A solid cables (S/FTP) has been designed for indoor applications fully supporting the more demanding office and industrial communications requirements including voice, data, VoIP, Video Conferencing, security, IP based cameras and other demanding real-time applications. The cable covers the category 6A requirements for shielded twisted pair cables of 100 Ω and is characterized up to 500 MHz suitable for transmitting data over local area networks (LANs).
The cable’s 8 conductors (4-Pairs) are of solid bare copper with skin-foam polyethylene (PE) insulation and a PVC/LSZH jacket. The two insulated conductors are twisted together to form a pair and the four pairs with its unique pair lay are bundled up to form the basic cable unit. Each twisted pair shielded with an aluminum foil to add physical separation between the four pairs and prevent internal cross talk.
All four pairs are covered with an overall braided screen to provide immunity from electromagnetic interference. Category 6A S/FTP cables provides better immunity and covers a wider spectrum of low frequency with the braided shield and high frequency immunity with the foil shield.
$ 304.95 -

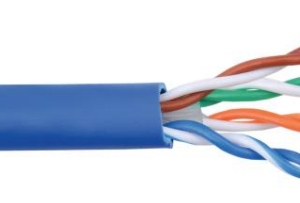

SCSUUTPC6ALSZHGY Cat6A cable roll PVC Opterna Cat6A 23AWG U/UTP LSZH 4P Cable 305mtr/Box Grey
SCSUUTPC6ALSZHGY Opterna
DESCRIPTION
Opterna Category 6A 4-pair U/UTP copper cable forms the foundation of 10 Gigabit Ethernet networks. The cable exceeds Category 6A performance ensuring reliability in delivering 10G network speed, low BER and high data throughput.
Opterna 4 pair category 6A solid cables (U/UTP) has been designed for indoor applications fully supporting the more demanding office and industrial communications requirements including voice, data, VoIP, Video Conferencing, security, IP based cameras and other demanding real-time applications.
The cable covers the category 6A requirements for twisted pair cables of 100 Ω and is characterized up to 500 MHz suitable for transmitting data over local area networks (LANs).
The cable’s 8 conductors (4-Pairs) are of solid bare copper with high density polyethylene (HDPE) insulation and a PVC/LSZH jacket. The two insulated conductors are twisted together to form a pair and the four pairs with different twist ratio are laid up to form the basic cable unit.
Standards
• UL 444
• ANSI/TIA-568-C.2
• ISO/IEC 11801:2011 (Ed 2.2) Class EA
• CENELEC EN 50173-1:2011
• IEC 61156-5
• EN 50288-11-1$ 238.24 -
SCSPCC6UTP05MLSZHGY Opterna Patch cord UTP, category 6, standard plug , LSZH 5 meter grey
SCSPCC6UTP05MLSZHGY Opterna
DESCRIPTION
Opterna UTP Patch cord conforms to ANSI/TIA-568-C.2, ISO/IEC 11801:2011 edition 2.2 and CENELEC EN 50173 (2011) for Category 6/Class E applications. The products have been tested up to 250MHz and are designed for high speed protocols such as Gigabit Ethernet (1000Mbps) applications. The Patch cords are constructed of a U/UTP stranded wire cable and comprises two modular plugs at both ends of the cables. The RJ45 plugs are protected with molded snag-less boots that prevents the latch on the RJ45 plugs from getting damaged during installation.
Applications
• Cross connect, Patch Panel and Work Area
• 4/16 Mbps Token Ring (IEEE 802.5)
• 10/100/1000 BASE-T (IEEE 802.3)
• 155 Mbps ATM
• 100 Mbps TP-PMD
• Analogue Voice, ISDN, ADSLStandards
• ANSI/TIA-568-C.2
• ISO/IEC 11801:2011 (Ed 2.2) Class E
• CENELEC EN 50173-1:2011
• ANSI/TIA-1096-A (formerly FCC Part 68)
• IEC 60603-7-4$ 4.90 -
SCSPCC6UTP03MLSZHGY Opterna Patch cord UTP, category 6, standard plug , LSZH 3 meter grey
SCSPCC6UTP03MLSZHGY Opterna
DESCRIPTION
Opterna UTP Patch cord conforms to ANSI/TIA-568-C.2, ISO/IEC 11801:2011 edition 2.2 and CENELEC EN 50173 (2011) for Category 6/Class E applications. The products have been tested up to 250MHz and are designed for high speed protocols such as Gigabit Ethernet (1000Mbps) applications. The Patch cords are constructed of a U/UTP stranded wire cable and comprises two modular plugs at both ends of the cables. The RJ45 plugs are protected with molded snag-less boots that prevents the latch on the RJ45 plugs from getting damaged during installation.
Applications
• Cross connect, Patch Panel and Work Area
• 4/16 Mbps Token Ring (IEEE 802.5)
• 10/100/1000 BASE-T (IEEE 802.3)
• 155 Mbps ATM
• 100 Mbps TP-PMD
• Analogue Voice, ISDN, ADSLStandards
• ANSI/TIA-568-C.2
• ISO/IEC 11801:2011 (Ed 2.2) Class E
• CENELEC EN 50173-1:2011
• ANSI/TIA-1096-A (formerly FCC Part 68)
• IEC 60603-7-4$ 3.81 -

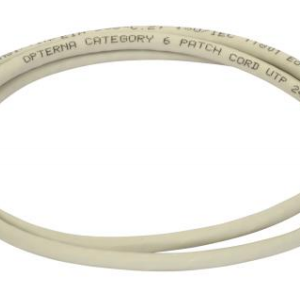

SCSPCC6UTP02MLSZHGY Opterna Patch cord UTP, category 6, standard plug , LSZH 2 meter grey
SCSPCC6UTP02MLSZHGY Opterna
DESCRIPTION
Opterna UTP Patch cord conforms to ANSI/TIA-568-C.2, ISO/IEC 11801:2011 edition 2.2 and CENELEC EN 50173 (2011) for Category 6/Class E applications. The products have been tested up to 250MHz and are designed for high speed protocols such as Gigabit Ethernet (1000Mbps) applications. The Patch cords are constructed of a U/UTP stranded wire cable and comprises two modular plugs at both ends of the cables. The RJ45 plugs are protected with molded snag-less boots that prevents the latch on the RJ45 plugs from getting damaged during installation.
Applications
• Cross connect, Patch Panel and Work Area
• 4/16 Mbps Token Ring (IEEE 802.5)
• 10/100/1000 BASE-T (IEEE 802.3)
• 155 Mbps ATM
• 100 Mbps TP-PMD
• Analogue Voice, ISDN, ADSLStandards
• ANSI/TIA-568-C.2
• ISO/IEC 11801:2011 (Ed 2.2) Class E
• CENELEC EN 50173-1:2011
• ANSI/TIA-1096-A (formerly FCC Part 68)
• IEC 60603-7-4$ 3.27 -

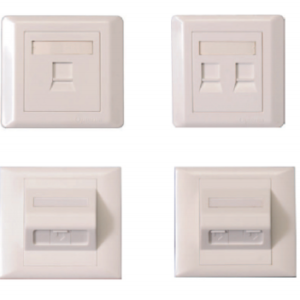

SCSFPUK1WH Opterna Faceplate 86 x 86 mm for 1 Keystone Jack, U.K. Standard
SCSFPUK1WH Opterna
DESCRIPTION
Opterna faceplates are manufactured of highly stable fire retardant and high density plastics which ensure product durability. It comes with a combination of 1, 2, 3 and 4 ports for your application and to satisfy your customer’s needs. Opterna faceplates are available in two series; the elegant series of Opterna faceplates comes with a peripheral frame providing an elegant appearance where in the screw holes are concealed by the peripheral frame. Part of the design is the integrated label holder which allows the installer to fix labels and hence making the faceplate TIA 606 compliant. The faceplate comes with an in-built shutter to prevent dust and dampness protection. The angled design of faceplate maintains the patch cords bend radius and provides extra room behind the back box for storage of cable. The angled faceplate is highly recommended for Category 6 and 6A shielded installations. Other variants of the faceplate series are the floor box adaptors available in straight and angled.
$ 1.23 -

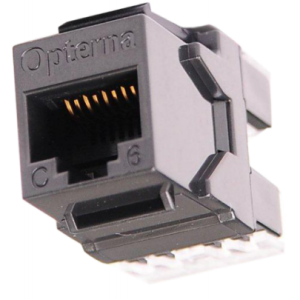

SCSJAC6UTPBK Opterna 180° Cat 6 Unshielded Keystone jack with T568A/B label, Black
SCSJAC6UTPBK Opterna
DESCRIPTION
Opterna category 6 unshielded jacks are designed and manufactured to meet and exceed the current and future requirements for high bandwidth and forms an essential element of the structured cabling system. The keystone jacks are highly reliable and offers optimal network performance. The jack forms part of the faceplate as well as part of the modular patch-panel. Clear wire retaining caps are supplied which provide additional cable strain relief. The keystone jacks are color-coded for both 568A and 568B standards and can be terminated using a standard 110 termination tool.
Applications
• Horizontal Distribution and Backbone Cabling
• 4/16 Mbps Token Ring (IEEE 802.5)
• 10/100/1000 BASE-T (IEEE 802.3)
• 155 Mbps ATM
• 100 Mbps TP-PMD
• Analogue Voice, ISDN, ADSL
• HVAC alarm systems and other signallingStandards
• ANSI/TIA-568-C-2
• ISO/IEC 11801:2011 (Ed 2.2) Class E
• CENELEC EN 50173-1:2011
• ANSI/TIA-1096-A (formerly FCC Part 68)
• IEC 60603-7-4$ 3.00
