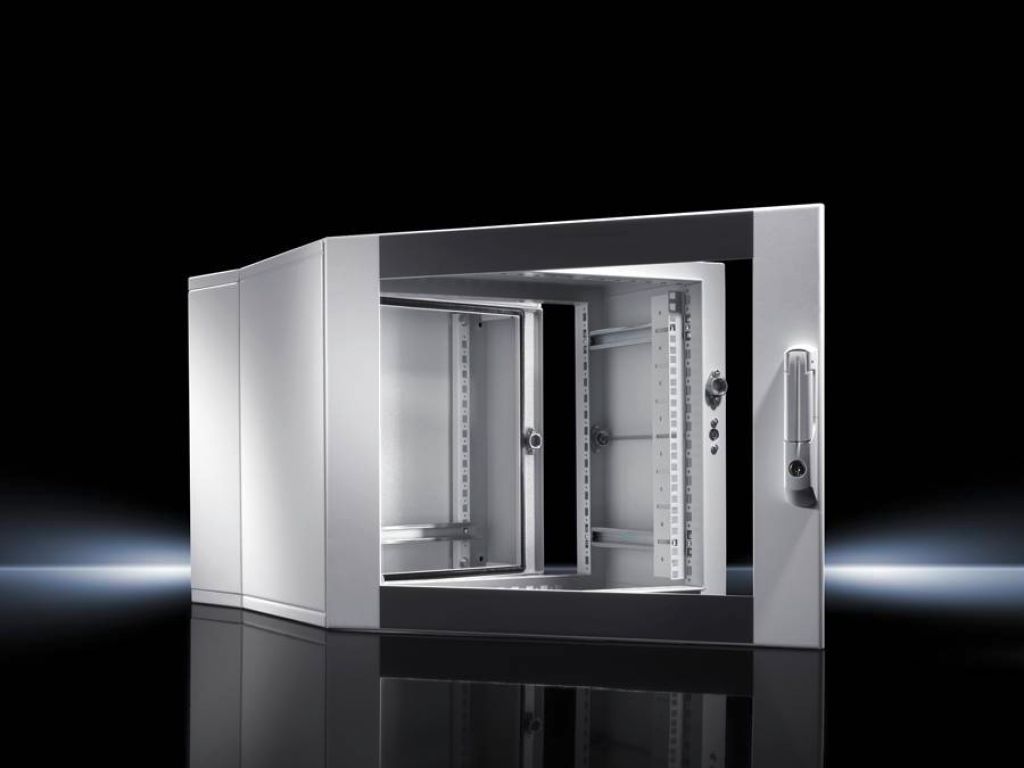

7712135 RITTAL DK 12U Distribution Cabinet

RITTAL 7712135

DK 12u distribution enc RAL 7035

Description

Wall-mounted enclosure with optimum accessibility due to hinged part.
Material Wall and hinged part: Sheet steel, 1.5 mm
Viewing window: Single-pane safety glass, 3 mm
Surface finish Powder-coated
Colour Wall and hinged part: RAL 7035
Glazed door: RAL 7035/7015 (slate grey)
Protection category IP to IEC 60 529 IP 55
Supply includes Wall section
Hinged part with 25 mm pitch pattern of holes in the front and rear frame
Designer glazed door
Wall section: Gland plate, solid, top and bottom
Wall section: 2 vertical punched rails
Wall section: C rail mounted horizontally for cable clamping
1 Hinged part with two 482.6 mm (19″) mounting angles, fully depth adjustable
4 4 wall mounting brackets 10 mm
1 Mini-comfort handle
1 Security lock 3524 E
Design with punched rails and mounting angles, depth-variable
Basic material Sheet steel
Dimensions Width: 600 mm
Height: 612 mm
Units: 12 U
Depth: 473 mm
Depth hinged part 316 mm
Installation depth 420 mm
Clearances Clearance width: 502 mm
Clearance height: 549 mm
Wall section Depth: 135 mm
Load capacity Hinged part, static (max.): 600 N
Packs of 1 pc(s).
Weight/pack 36 kg
